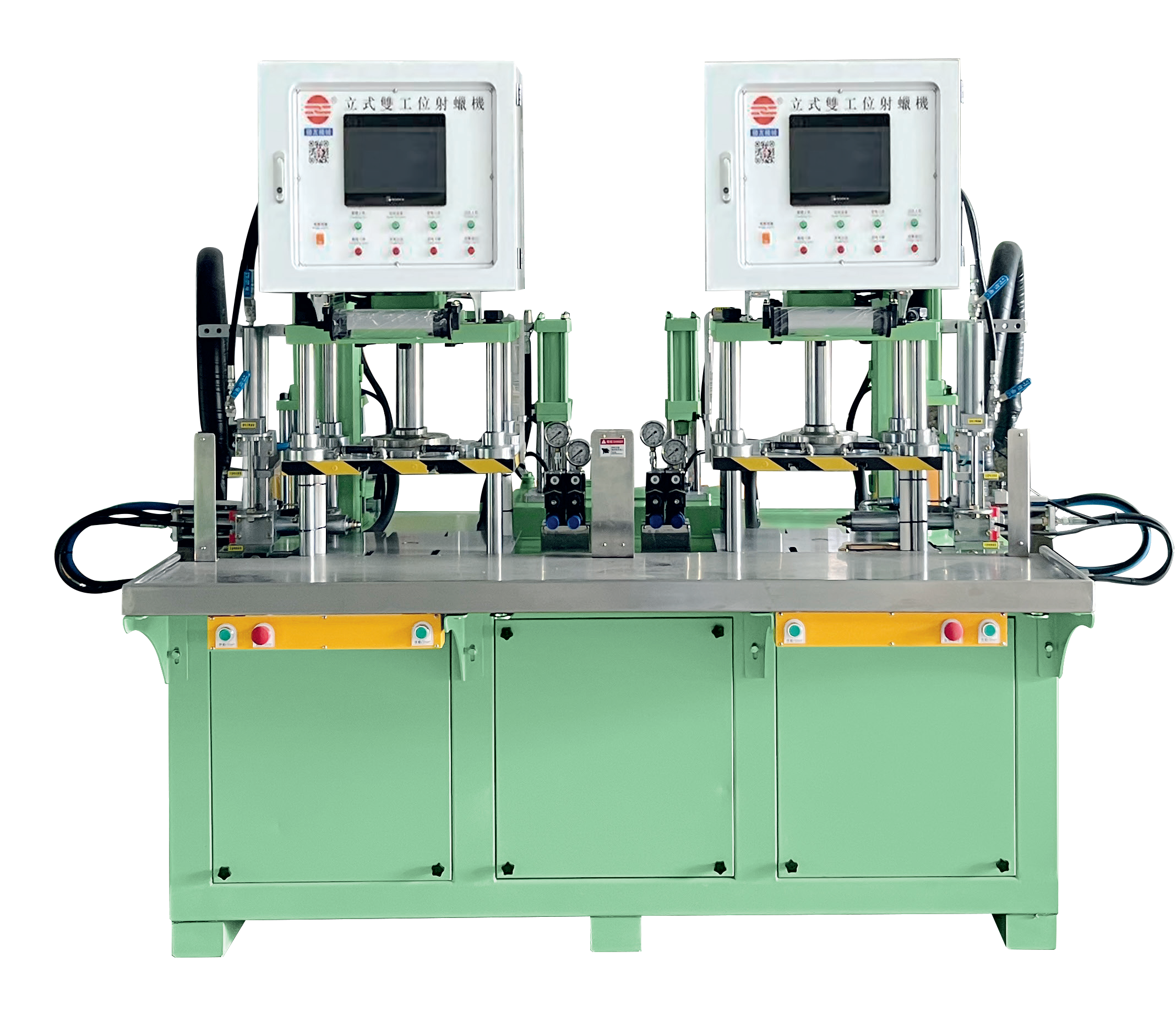

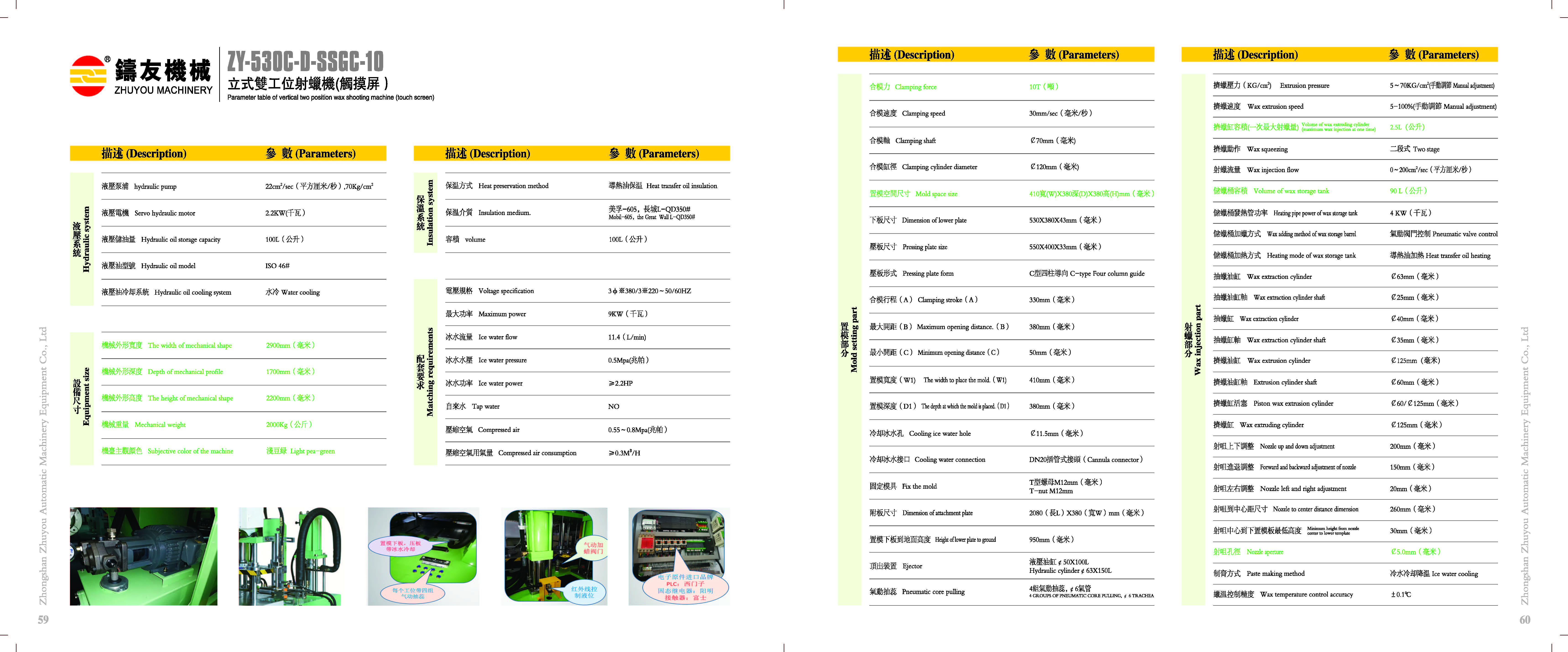

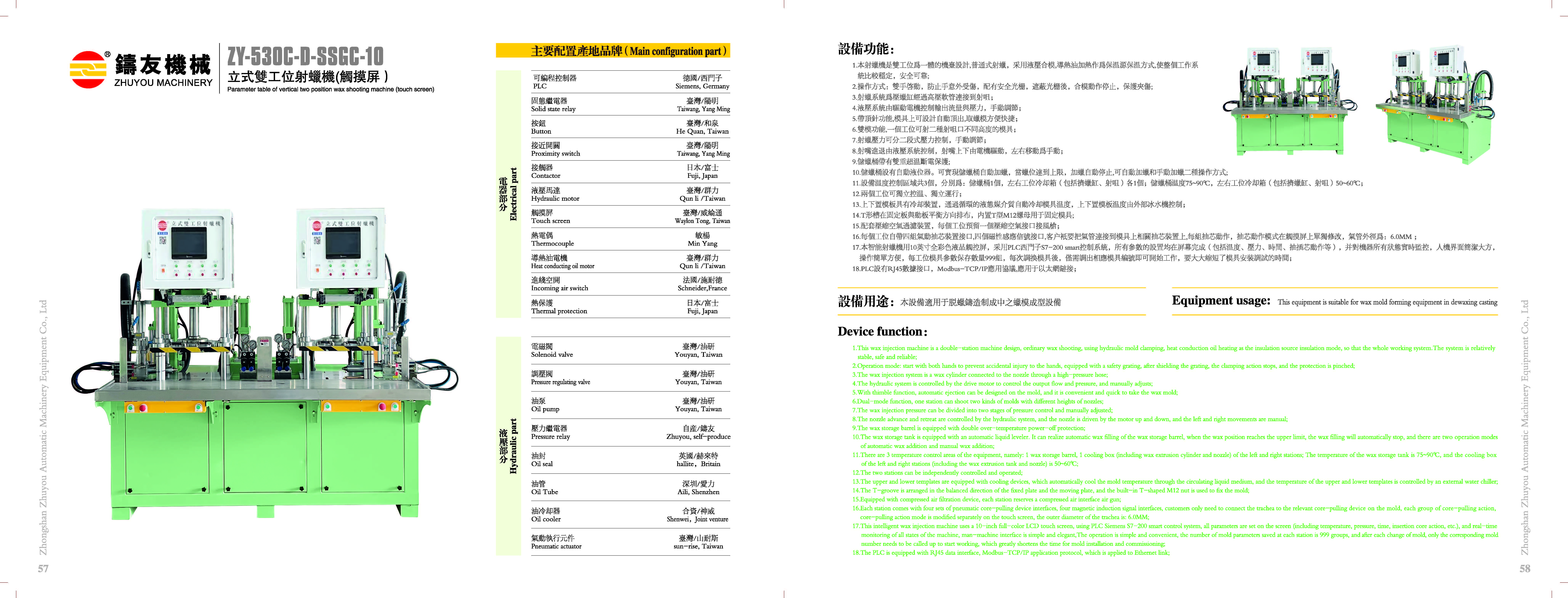

1. This wax injection machine is a four-column vertical pressing die plate machine designed with dual stations. It uses direct wax injection, using hydraulic mold clamping and thermal oil heating as the insulation source, making the entire working system relatively stable, safe and reliable.
2. Operation method: Start both hands to prevent accidental injuries from hand. It is equipped with a safety grating ruler. After touching the grating, the mold closing action stops to protect the clamping.
3. The direct injection wax pressing wax cylinder is above the injection nozzle and uses hard connection to ensure that the set pressure is consistent with the actual output pressure. This design is a patented invention of our company.
4. The hydraulic system is controlled by the servo motor and the output flow and pressure are controlled by the parameters.
5. The mold clamping cylinder is controlled in two-stage, with fast empty space and deceleration mold clamping when contacting the mold.
6. With thimble function, the mold can be designed to automatically eject, making the wax mold easy to take.
7. Dual-mode function, one station can shoot two molds of different heights of nozzle openings.
8. The injection wax pressure can be controlled in two-stage pressure and adjusted in a parameterized manner.
9. The injector advances and retreats are controlled by the hydraulic system, and the injector is driven by the motor up and down, and moves manually from left to right.
10. The wax storage barrel has an overtemperature power-off protection device, double protection.
11. The wax storage barrel is equipped with an automatic liquid leveling device. It can realize automatic wax supply by wax refiner. When the wax position reaches the upper limit, wax addition will automatically stop. There are two operating methods: self-service wax repair and hand-assisted wax repair;
12. Temperature control area: 1 wax storage cylinder, 1 cooling cylinder at left and right stations, 1 wax squeeze cylinder and nozzle at left and right stations, a total of 5 temperature zones control, the temperature of the wax storage cylinder is 70~90℃, the temperature of the left and right stations is 51~67℃, and the wax squeeze cylinder and nozzle at left and right stations is 49~65℃;
13. The two stations can independently control the temperature and operate independently.
14. The upper and lower plates have cooling devices, and the mold temperature is automatically cooled through the circulating liquid medium.
15. The T-shaped groove is arranged in the balance direction of the fixing plate and the moving plate, and a built-in T-shaped M12 nut is used to fix the mold.
16. A compressed air filter device is provided, and a compressed air interface air gun is reserved for each station.
17. Each station has 4 sets of pneumatic core extraction devices, and the cylinder is magnetically induced by a single head. Customers can just connect the trachea to the relevant core extraction devices on the mold. The order of each set of core extraction and when the core extraction signal can be modified separately on the touch screen. The outer diameter of the trachea is: 6.0MM.
18. This smart wax injection machine uses a 10-inch full-color LCD touch screen, and uses a PLC Siemens S7-200 smart control system. All parameters are set on the screen (including temperature, time, core pulling action, hydraulic pressure, flow, etc.), and all the states of the machine are monitored in real time. The human-machine interface is simple and elegant, and the operation is simple and convenient. The number of mold parameters is saved in each station. After changing the mold, you only need to call out the corresponding mold number to start work, which greatly shortens the mold installation and adjustment time.
19. The PLC has an RJ45 data interface, Modbus-TCP/IP application protocol, and is applied
