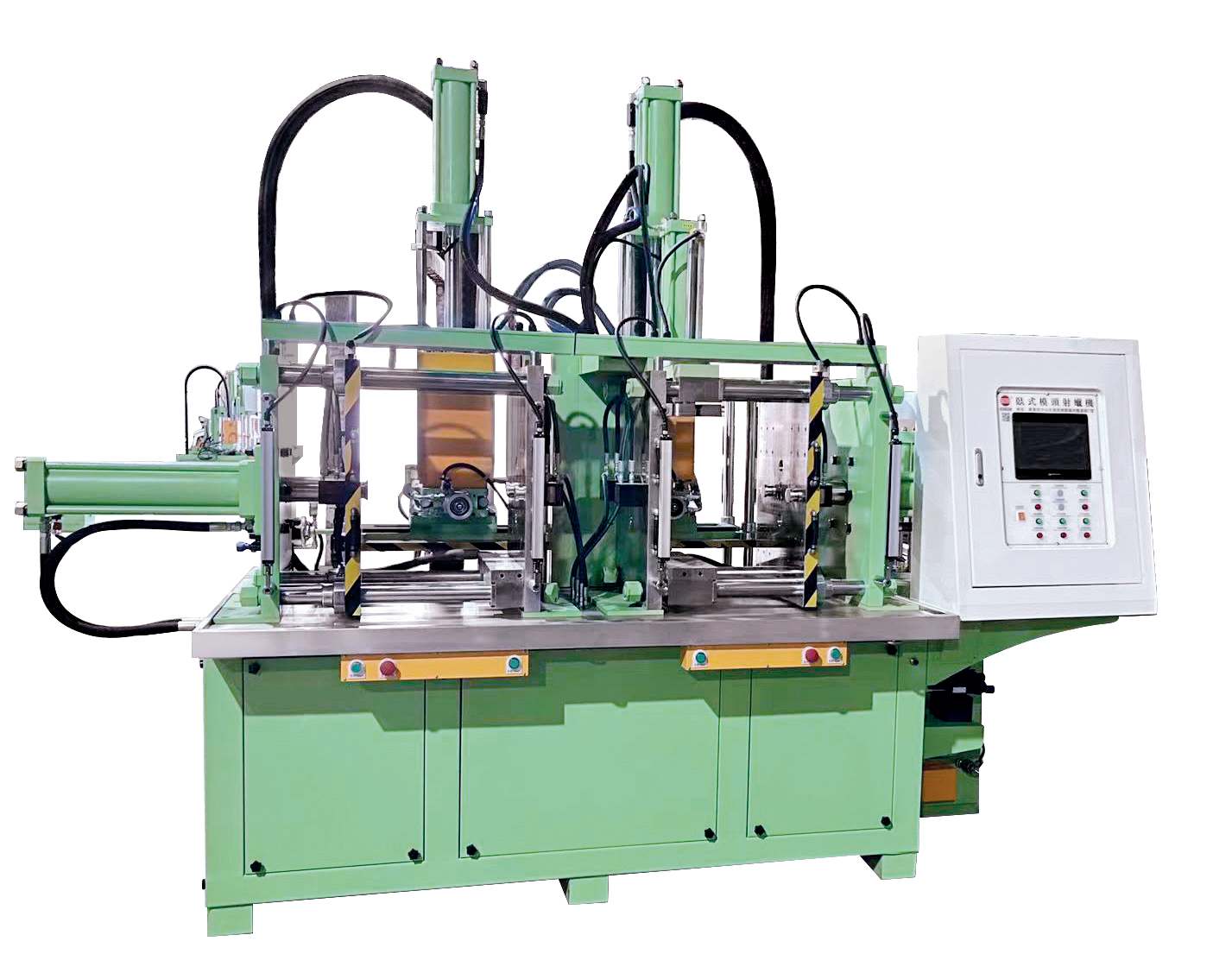

1. This wax injection machine is a four-column vertical pressing die plate machine designed with dual stations. It uses direct wax injection, using hydraulic mold clamping and thermal oil heating as the insulation source, making the entire working system relatively stable, safe and reliable.
2. Operation method: Start both hands to prevent accidental injuries from hand. It is equipped with a safety grating ruler. After touching the grating, the mold closing action stops to protect the clamping.
3. The direct injection wax pressing wax cylinder is above the injection nozzle and uses hard connection to ensure that the set pressure is consistent with the actual output pressure. This design is a patented invention of our company.
4. The hydraulic system is controlled by the servo motor and the output flow and pressure are controlled by the parameters.
5. The mold clamping cylinder is controlled in two-stage, with fast empty space and deceleration mold clamping when contacting the mold.
6. With thimble function, the mold can be designed to automatically eject, making the wax mold easy to take.
7. Dual-mode function, one station can shoot two molds of different heights of nozzle openings.
8. The injection wax pressure can be controlled in two-stage pressure and adjusted in a parameterized manner.
9. The injector advances and retreats are controlled by the hydraulic system, and the injector is driven by the motor up and down, and moves manually from left to right.
10. The wax storage barrel has an overtemperature power-off protection device, double protection.
